This and the following chapters are from a forthcoming book: Adaptive Radix Tree: Sorted Maps For Fun & Profit

Chapter 0 — What’s a trie?

This tutorial assumes you’re a Go programmer who’s used map[K]V and has reached for a sorted map at some point — google/btree, google/btree, or one of the third-party red-black tree libraries — and got a feel for the API. It does not assume you know what a trie is or how an Adaptive Radix Tree differs from one.

Each chapter builds a working sorted map. Chapter 1 is the simplest imaginable trie. Chapters 2 through 7 each add one decision: lazy expansion, path compression, smaller node types, polymorphism. By chapter 8 you can read the project’s main art.Tree source as a known artifact rather than a wall of code. This chapter is just the primer — no Go yet.

The premise

A sorted map is a map[K]V whose iteration order is the natural ascending order of K, not insertion order or hash order. The operations are familiar:

Put(k, v) // insert or replace
Get(k)    // (v, ok)
Delete(k) // remove if present
Len()     // count
Range(kFrom, kTo)     // iterator in ascending key order

Two well-known data structures offer this API:

• Hash maps with side indexes (e.g. map[K]V plus a sorted slice you maintain by hand). Lookups are O(1), but every mutation costs O(n) on the slice or O(log n) on a heap, and the iteration order is whatever you paid to maintain.

• Self-balancing BSTs — red-black, AVL, B-tree. Lookups, inserts, and deletes are O(log n); iteration is a tree walk. These compare keys as opaque blobs: every comparison reads every byte of the key until it finds a difference.

Tries take the third path: don’t compare keys; walk them.

The trie idea

A trie (”retrieval tree”, traditionally pronounced try) is a tree where each edge is labelled with one element of the key (a byte, in our case), and the path from root to a node is the prefix of every key reachable below it. There is no key comparison. Lookup reads the key byte-by-byte and follows the edge labelled with that byte.

The trie was invented during the Cambrian data structure explosion.

• René de la Briandais (1959) — “File Searching Using Variable Length Keys,” Proceedings of the Western Joint Computer Conference. First published description of the structure.

• Edward Fredkin (1960) — “Trie Memory,” Communications of the ACM 3(9):490–499. Coined the name trie (pronounced “try”) from the middle syllable of retrieval.

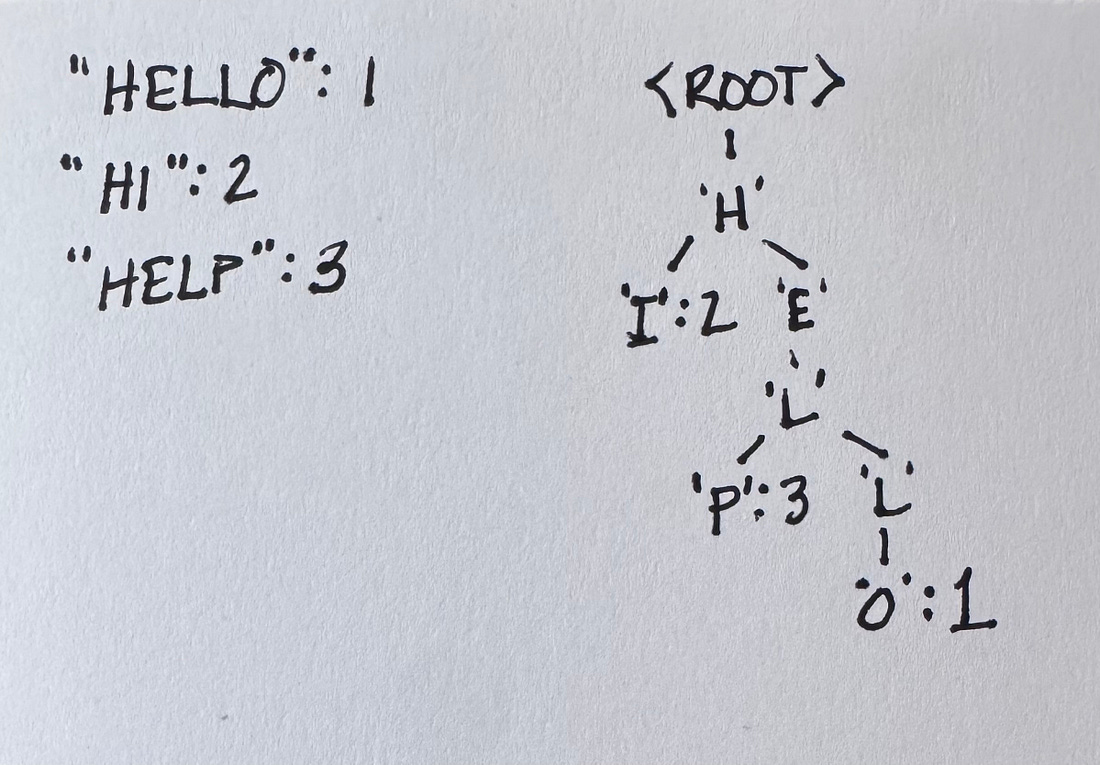

An ASCII picture of the keys {hello:1, hi:2, help:3}:

Two consequences fall out for free:

1. Sorted iteration is automatic. At each node, visit children in ascending byte order. The yielded keys appear in byte-wise sorted order with no comparisons and no balancing.

2. Shared work for shared prefixes. A lookup of help and a lookup of hello traverse the same first four edges. The per-byte cost depends on the keys’ shape, not on the size of the map.

What a trie costs

The honest tradeoffs are equally direct:

• One node-traversal per byte. A 16-byte key is 16 pointer dereferences down the tree. If the tree is bigger than your L1 cache, that’s 16 cache misses. A B-tree comparing the same key against a few interior keys is fewer dereferences but each comparison reads more bytes; the right answer depends on the workload.

• Wasted nodes for sparse keysets. Every byte position where any key has a unique value gets its own node. If your keys are random 16-byte blobs, almost every level branches, and you pay for one inner node per byte per key. Chapter 1 makes this visible: ~33 MB to store 1 000 random 16-byte keys in the simplest possible trie.

The book is structured according to the principles of David Parnas and Paul Clements's 1986 paper A Rational Design Process: How and Why to Fake It. The first chapter introduces a simple-but-slow implementation. Each of the seven succeeding chapters addresses the slowness of the previous chapter until we have the whole ART.

• Only full-sized nodes (chapter 1)—we build a whole working tree out of nodes that assume all 256 children are valid. (Foreshadowing—this will turn out to be a useful disaster.)

• Lazy expansion (chapter 2)—stop allocating inner nodes along a tail with no siblings.

• Path compression (chapter 3)—let one node represent several consecutive bytes when none of them branch.

• Small node type (chapter 4)—stores up to 4 keys.

• Polymorphism (chapter 5)—we’re going to add more node sizes, so why don’t we make it easy? (Make the hard change easy, then make the easy change.)

• In between node types (chapters 6 & 7)—save space at the cost of computation by filling in nodes with up to 16 & then 48 keys. (Of course it’s more interesting than a simple tradeoff when space saving reduces memory pressure & thus saves time.)

• Polish (chapter 8)—inline-key buffers, embedded headers, a reused path buffer for Range. Allocations per key drop to roughly one.
